Maison T Plus SP
Technical Specifications / 技术 规格
Rated Load (kg) 载重 | 320-400 |
Suspension 绕绳比 | 2:1 |
Machine room 机房 | MRL无机房 |
Max travel (m) 最大行程 (m) | 16 |
Max number of stops 最大停站数 | 6 |
Rated speed (m/s) 额定速度 (m/s) | 0,15 / 0,3 / 0,4 |
Min pit depth (mm) 最小底坑 (mm) | 250 |
Min clear headroom (mm) 最小顶层 (mm) | 2600 |
Max entrances 入口数 | 3 |
Panoramic option | Yes |
Door Option | Automatic / Semi-automatic |
Directives & Standards | GB/T21739-2008, |
产品介绍
自支撑井道
Maison T Plus SP 可配铝合金井道，在不方便使用混凝土井道的情况下，可实现自支撑或固定在墙上

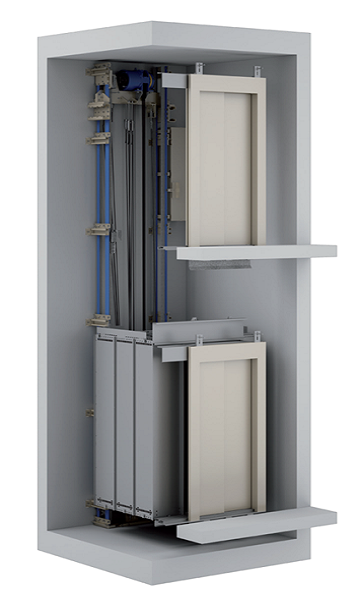

Self-supported shaft
Maison T Plus SP is offered with aluminum construction, self-supported or ftted on to the wall, where concrete shaft is not available.
紧急救援
遇到断电等紧急情况时，紧急救援系统启动，将乘客送至最近的楼层，可确保安全。
Emergency evacuation
In the unlikely event of power failure, the emergency evacuation system ensures the safe transportation of passengers to the nearest floor.
杰出舒适感
无齿轮马达和最先进的变频器带来最佳质量和无以伦比的乘坐体验。
Οutstanding ride quality
Premium quality and exceptional ride comfort are delivered by both a gearless motor and
a state-of-the-art inverter.
低噪音
无齿轮马达，最先进的变频器和革命性的设计确保了轿厢内外的低噪音模式。
Low noise levels
Gearless motor and state-of-the-art inverter combined with innovative design guarantees remarkably low noise levels inside and outside the cabin.
环保
节能产品可以有效减少碳排放。1100W功率的马达只需要6安的额定电流，通过待机模式及LED照明，可以节能60% 以上。
Eco-friendly
Energy saving product which reduces CO2 emission up to 60% using a 1100W motor with only 6 Amperes rated current, stand-by-mode and led lighting.
